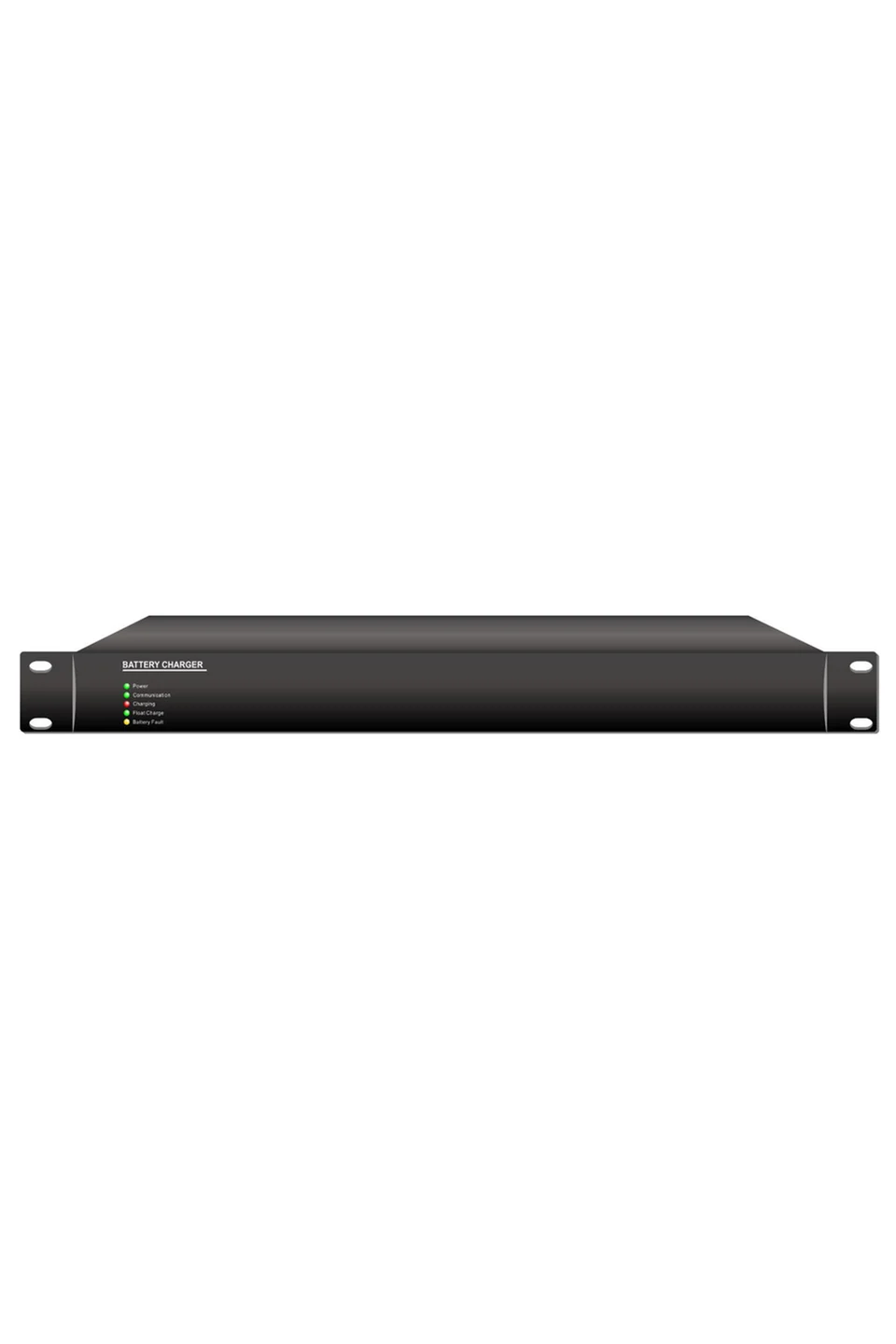

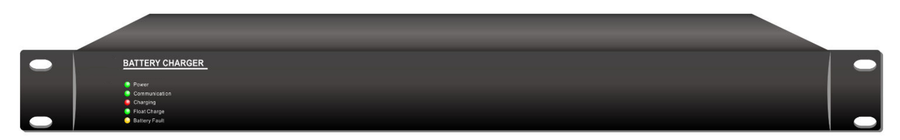

DP-EVAC1000BC Battery Charger And 24V Power Supply

DP-EVAC1000BC Battery Charger And 24V Power Supply

Features:

Auto switch into DC power supply when AC power fails

Select auto/manual charging mode automatically

Storage battery failure, over voltage, over-heat and over time charging detection

Automatic temperature control fan and over heat protection

Built-in battery charge management and monitoring circuit

When connected to AC power, DC24V will be off automatically

Storage battery support two or one DC 24V lead-acid battery

Selection charging mode automatically to ensure safety charging and service life

Pre-charge-constant current-trickle charge

High charging efficiency and restore efficiency

Support multiple volumetric battery≤200Ah

With ID pre-set its zone number up to 200 units

With RS485 to communicate with third party system

Specifications:

Model

DP-EVAC1000BC

Description

24V   DC Battery Charger and Power Supply

Power   Supply

220V-240V,   50/60Hz

AC   Maximum Current

2A

AC   Fuse

250V/3.15A,   low speed type

DC   Power Output

24V   DC battery

DC   Maximum Current

10A+10A

Maximum   Charging Current

10A   adjustable

Connector

Two   battery inputs, two 24V DC outputs, two RS485 and two CAN inputs.

Battery   capacity selector and ID selector.

Cooling   System

Speed   controlled cooling fan

Operation   Temp

+5

℃

to +45

℃

Operation   Humidity

<95%

Dimension(mm)

484(W)×450(D)×44(H)

Weight

4.5kg
