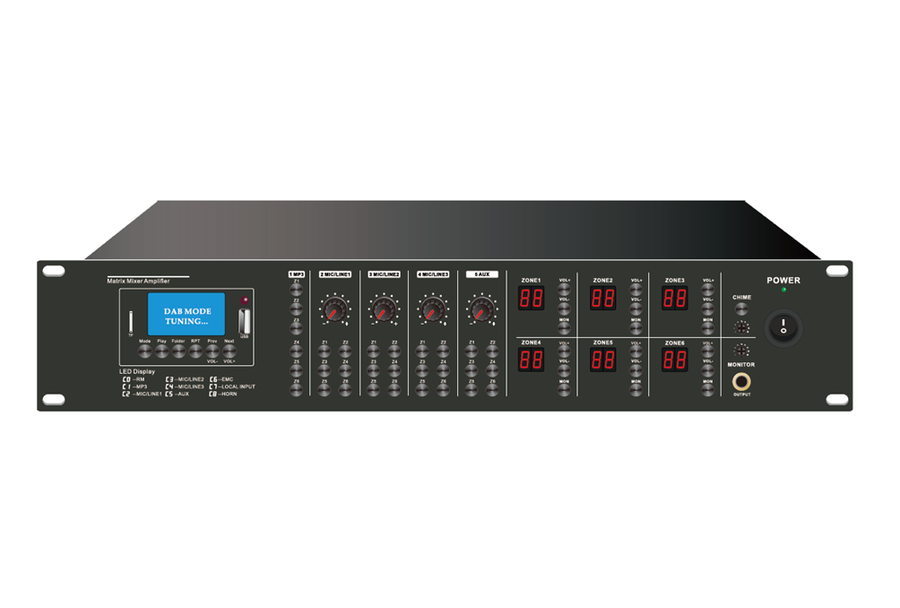

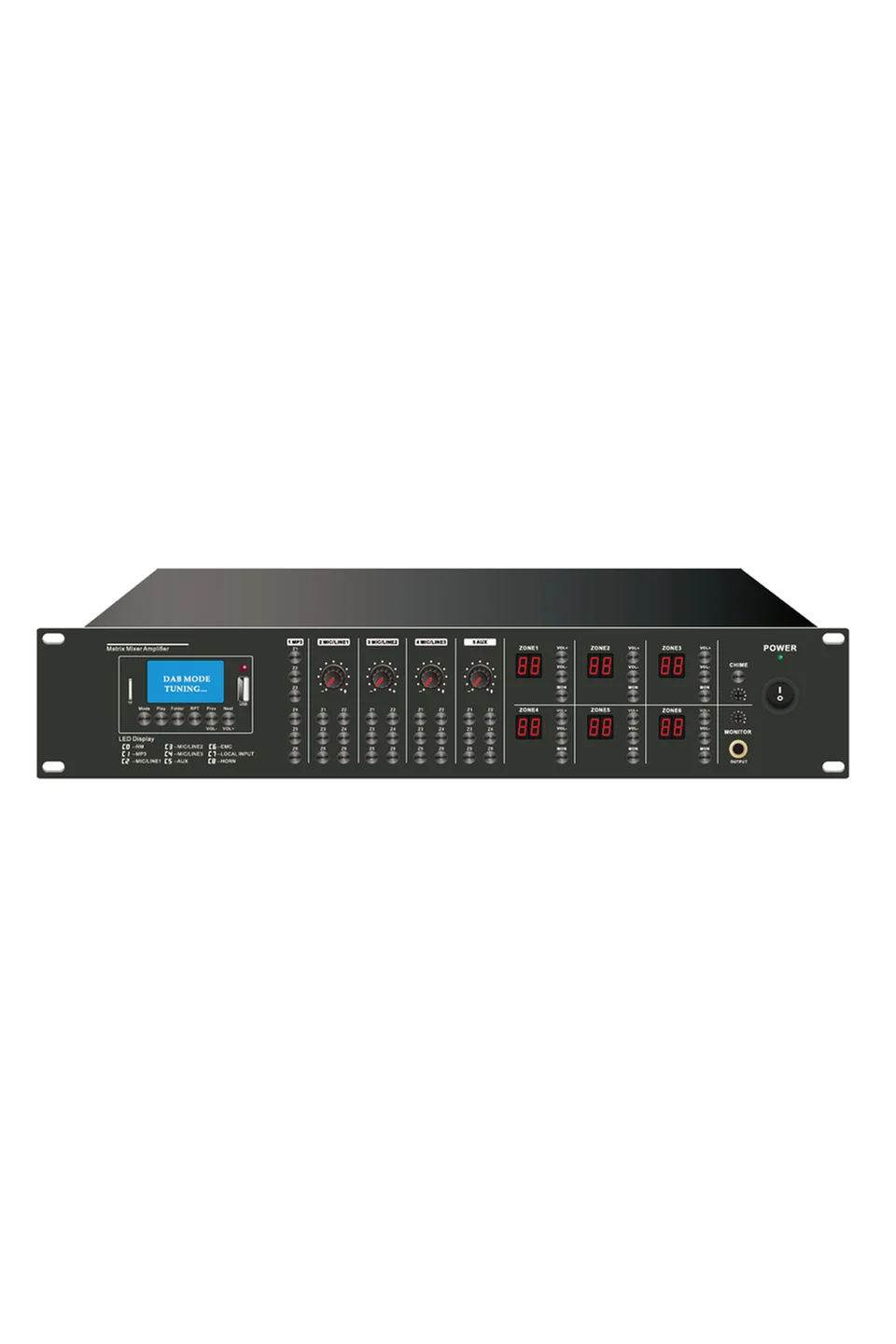

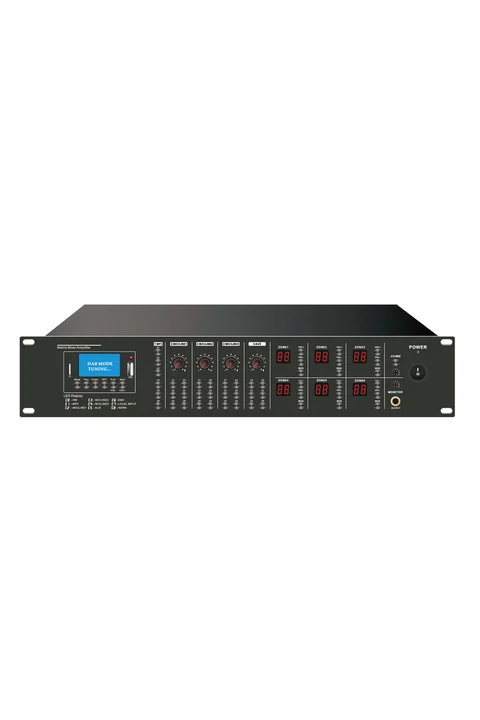

DP-MA6240 PA 6×6 Matrix Mixer Amplifier +USB/SD/FM/Bluetooth

DP-MA6240 PA 6×6 Matrix Mixer Amplifier +USB/SD/FM/Bluetooth

The PA-MX series mixer amplifier built-in 6×6 audio matrix so it is ideal for multiple room multiple music system. The amplifier could distribute 6 music to different rooms at the same time, 6 units of remote microphone could do live announcement with different priority, 6 remote control panel in each 6 room enable to select audio sources locally and adjust the loudspeaker loudness, moreover there is also interface for voice alarm system in case of emergency. The matrix amplifier built-in audio matrix, media player and power amplifier, so it is all in one solution for small to medium professional sound system and commercial audio. Its rated power output at 6 x 30W, 6 x 60W to 6 x 120W for both 100V & 4-16 Ohm loudspeakers.

Features:

6×6 Matrix mixer amplifier with 6 x 30W, 6 x 60W, 6 x 120W outputs.

5 sources and EMC input matrix distributed to 6 speaker zones.

MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority.

6 channel mixer amplifier controller with audio sources, zone volume control .

Matrix amplifier with remote control panel and remote paging microphone.

6 remote control by CAT5 cable up to 200 meters to select program and control volume.

6 remote paging microphone by CAT5 cable up to 200 meters communication.

Different 6 zone of different music program and different volume output.

6 Zone speaker outputs of 100V or 4/8 Ohms speakers.

3 mic/line switchable inputs of balanced XLR with 48V phantom power.

1 aux input and an integral USB/SD/FM player and Bluetooth can be matrix switched to any of the 6 zones independently.

Mic 1 channel has a variable override and each microphone input has switchable phantom power.

6 zone remote paging microphone for paging & announcement system.

Designed for multi-room systems requiring different audio sources.

Integral USB/SD/FM audio player and remote control.

Internal Bluetooth receiver with mobile use.

100V or 4/8 Ohms operation for PA system and hi-fi both sound system.

6 independent output zones for multiple room sound system.

24V mute contacts to integrate with fire alarm system.

AC230V and 24V DC both operation system.

DP-6000SV Remote Control Panel

Communication through CAT 5 cable up to 200 meters

Direct power supply from matrix controller

5 channel music selection and volume control

Touch screen panel

6 units capacity for each matrix controller

P-6000RM 6 Zone Remote Microphone

Communication through CAT 5 cable up to 200 meters

Direct power supply from matrix controller

6 speaker zone individual, group or all zone paging

Multiple Mic working simultaneously without interference

6 units capacity for each matrix controller

Specifications:

Model

DP-MA6240

Description

6×6 Matrix Mixer Amplifier with Mp3/FM/Blue Tooth

Rated Power Output

6×120W

Speaker Output

100V and 4-8 Ohms

Input

Mic/line1-3: 2.5mV, balanced XLR input with 48V phantom power,

Line1-2: 250mV; RCA type

Mute: 250mV, phoenix connector

Remote Mic

6 units by CAT5 cable up to 200 meters, direct powered by amplifier

Remote Panel

6 units by CAT5 cable up to 200 meters, direct powered by amplifier

Frequency Response

80-16KHz

THD

70dB

Protection

High temp, short circuit, clip & overload protection

Power Supply

AC230V or AC110V, 50-60Hz

Power Consumption

900W

Dimension

484(W)×320(D)×88(H)mm

Weight

15.5kg
