RG-EST100-E 2.4GHz Tek Bant Dual-Stream Point to Point

RG-EST100-E 2.4GHz Tek Bant Dual-Stream Point to Point

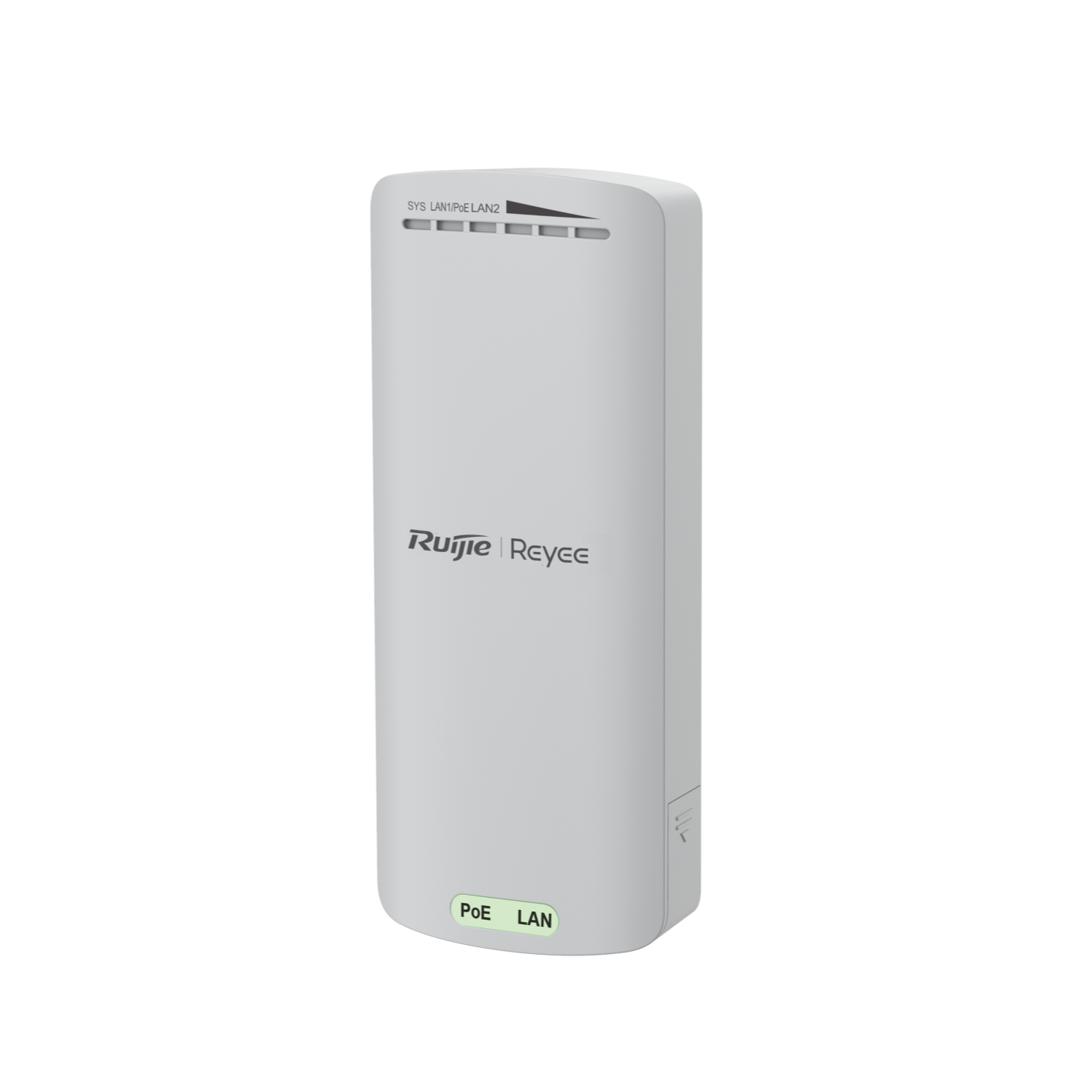

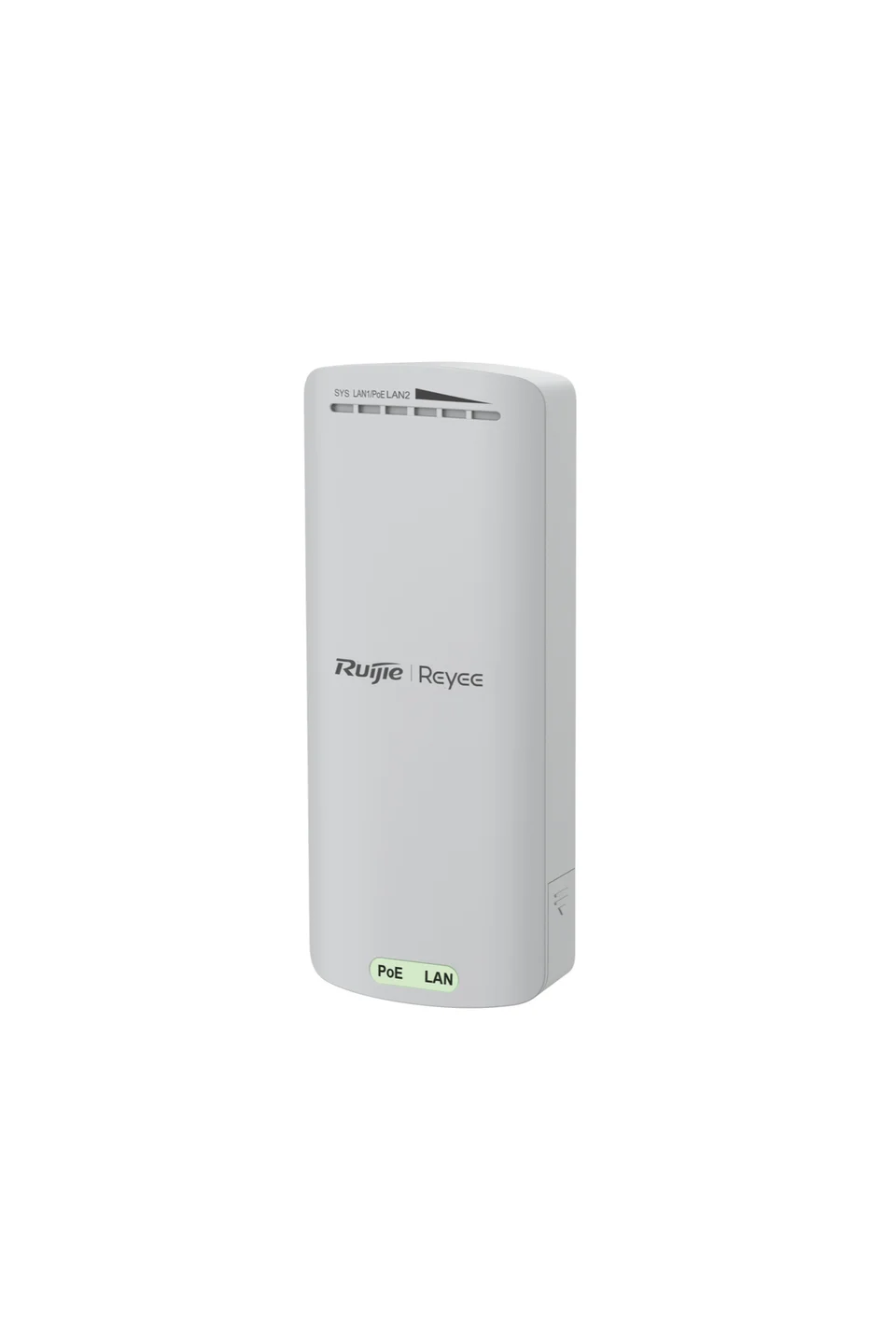

Reyee RG-EST100-E

Teknik Özellikler

Radyo Tasarımı :

2 GHz Tek-Bant Çift-Akış (Single-Band Dual-Stream)

İletim Protokolü :

IEEE 802.11b/g/n

Çalışma Bandı :

802.1111b/g/n: 2.400～2.483GHz

Anten :

Yönlü antenler, 8 dBi

Polarizasyon :

Yatay: 70°, Dikey: 70°

Köprüleme Mesafesi :

500 metre (önerilen)

Uzamsal Akışlar (Spatial Streams) :

2x2, MU-MIMO

Bellek/Flash :

64 MB/8 MB

Maksimum Veri Hacmi (Throughput) :

2.4 GHz’de 300 Mbps’ye kadar

Maksimum İletim Gücü :

≤100 mW (20 dBm) (ayarlanabilir)

IP Koruma Sınıfı :

IP55

Yıldırımdan Korunma :

±6 KV(Ortak Mod)

Kurulum :

Duvara-monte/Direğe-monte

Kurulum :

Duvara-monte/Direğe-monte

Boyutlar (Derinlik x Genişlik x Yükseklik) :

165,5mm×68,7mm×42mm

Ağırlık :

0,3 kg

Certification :

CE

Özellikler

Örnek

Köprüleme Performansı

RSSI (dBm)

Verim ve Kamera Sınırları

3 Milletvekili

4 ila 5 MP

6 ila 7 MP

7 ila 8 MP

RG-EST100-E

60 Mbps/100 metre (HT20)

30 Mbps/500 metre (HT20)

–58 dBm/100 m

–68 dBm/500 m

10/100 metre

5/500 metre

6/100 metre

3/500 metre

3/100 metre

1/500 metre

3/100 metre

1/500 metre

RG-EST310 V2

90 Mbps/100 metre (HT40)

80 Mbps/500 metre (HT40)

80 Mbps/1 km (HT40)

40 Mbps/2 km (HT40)

–52 dBm/100 m

–65 dBm/500 m

–68 dBm/1 km

–75 dBm/2 km

16/100 m

16/500 m

16/1 km

6/2 km

10/100 m

10/500 m

10/1 km

4/2 km

7/100 m

7/500 m

7/1 km

3/2 km

5/100 m

5/500 m

5/1 km

2/2 km

RG-EST350 V2

230 Mbps/1 km (HT40)

200 Mbps/3 km (HT40)

150 Mbps/5 km (HT40)

–58 dBm/1 km

–66 dBm/3 km

–70 dBm/5 km

50/1 km

45/3 km

20/5 km

30/1 km

25/3 km

12/5 km

20/1 km

13/3 km

8/5 km

15/1 km

12/3 km

6/5 km

RG-HavaMetro460G

230 Mbps/1 km (HT40)

200 Mbps/3 km (HT40)

150 Mbps/5 km (HT40)

80 Mbps/10 km (HT40)

–58/1 km

–66/3 km

–70/5 km

–78/10 km

50/1 km

45/3 km

20/5 km

16/10 km

30/1 km

25/3 km

12/5 km

8/10 km

20/1 km

13/3 km

8/5 km

5/10 km

15/1 km

12/3 km

6/5 km

4/10 km

RG-HavaMetro460F

80 Mbps/1 km (HT40)

80 Mbps/3 km (HT40)

70 Mbps/5 km (HT40)

50 Mbps/10 km (HT40)

–58/1 km

–66/3 km

–70/5 km

–78/10 km

12/1 km

12/3 km

10/5 km

6/10 km

8/1 km

8/3 km

6/5 km

4/10 km

6/1 km

6/3 km

5/5 km

3/10 km

4/1 km

4/3 km

3/5 km

2/10 km

RG-AirMetro550G-B

200 Mbps/1 km (HT40)

180 Mbps/3 km (HT40)

100 Mbps/5 km (HT40)

-60/1 km

-68/3 km

-75/5 km

35/1 km

30/3 km

16/5 km

20/1 km

16/3 km

10/5 km

15/1 km

12/3 km

6/5 km

10/1 km

8/3 km

5/5 km
